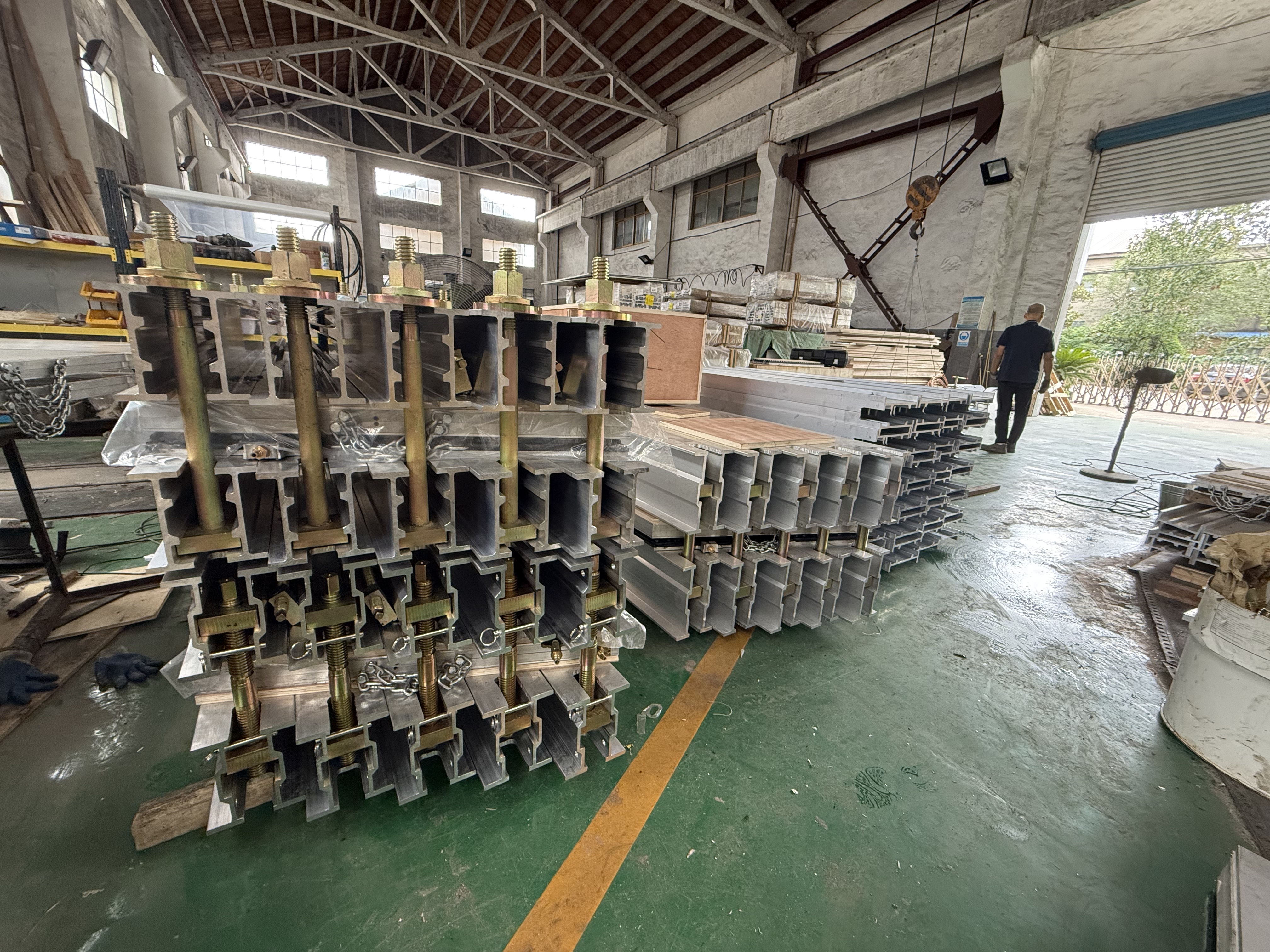

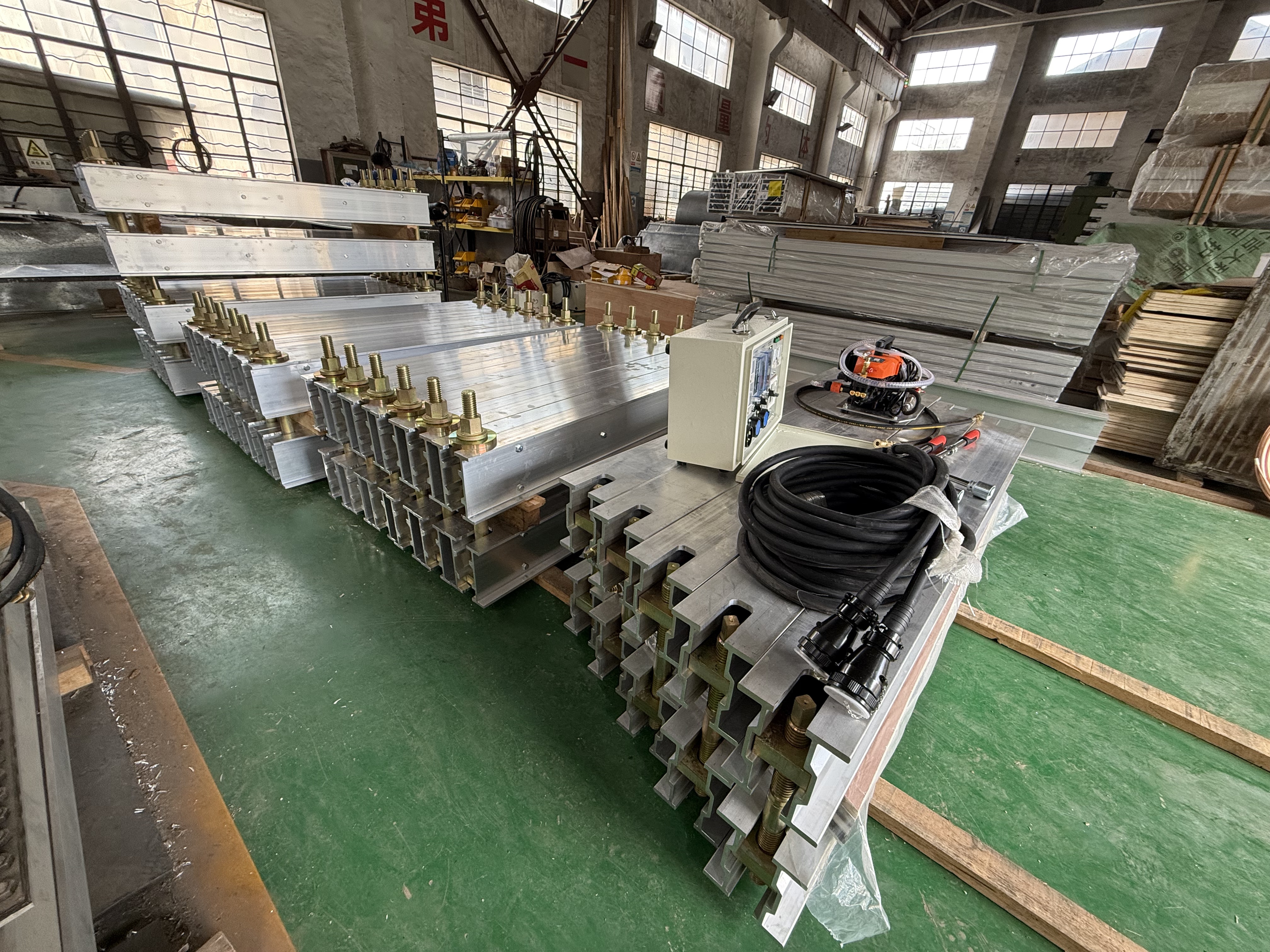

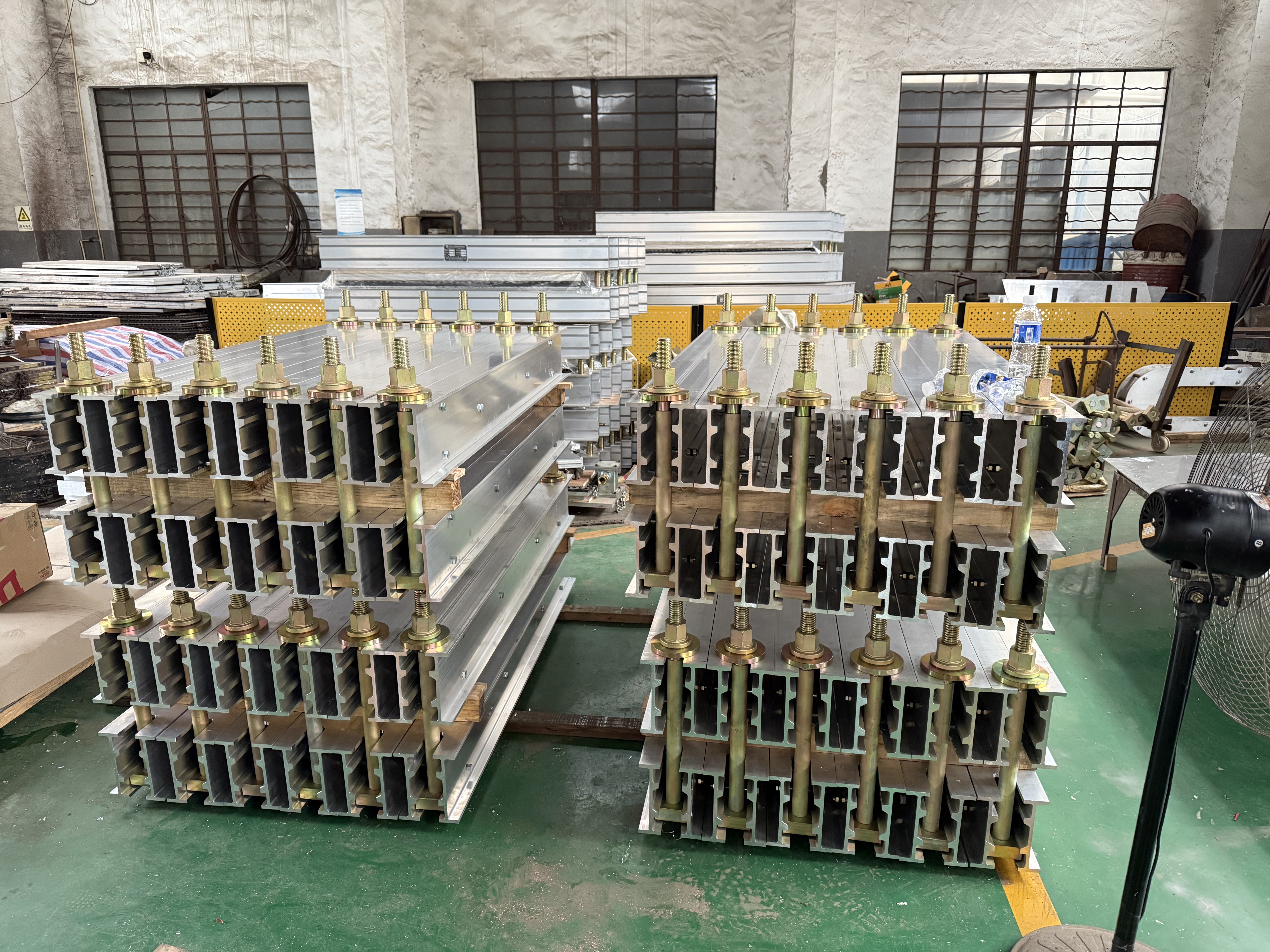

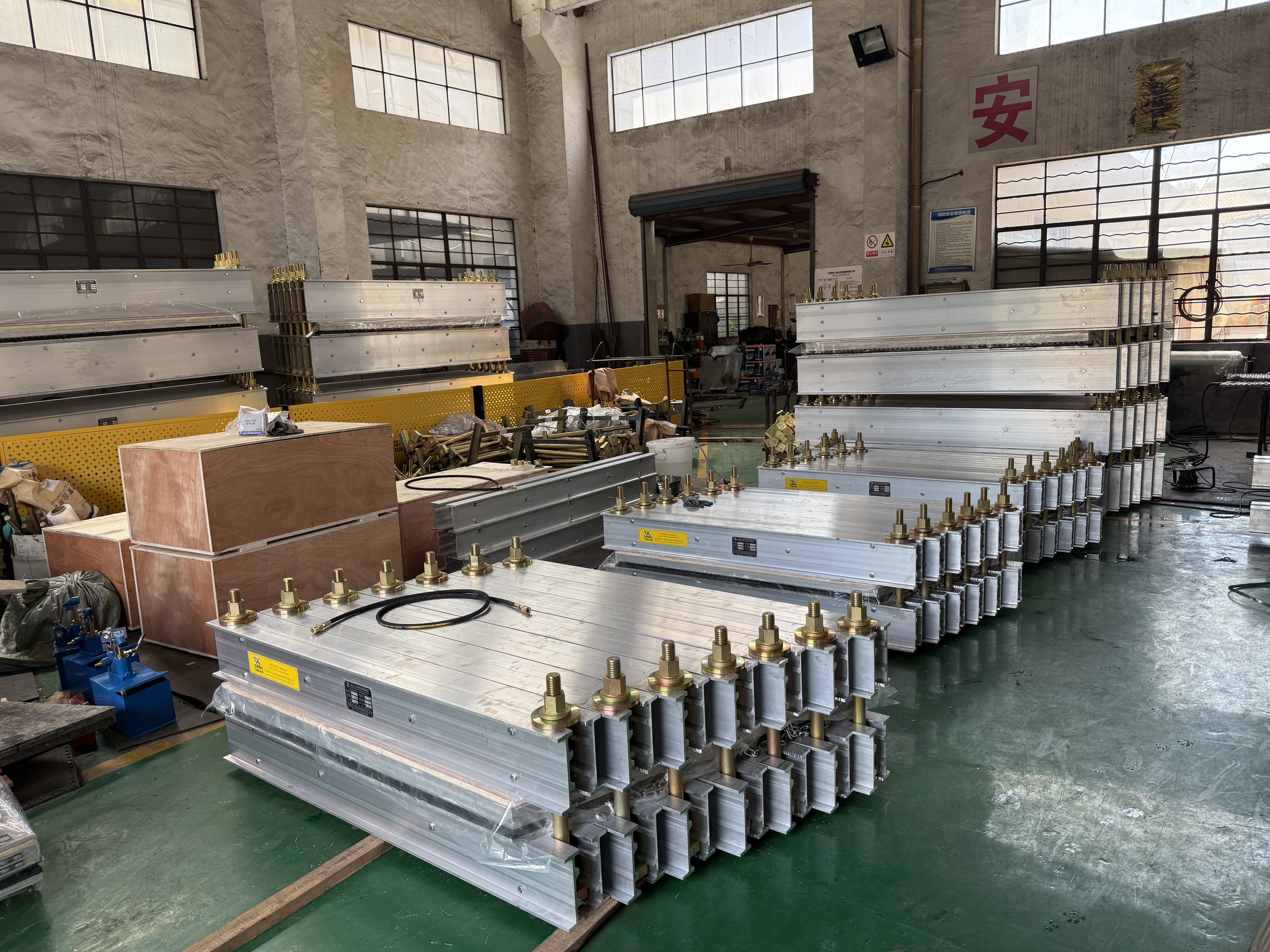

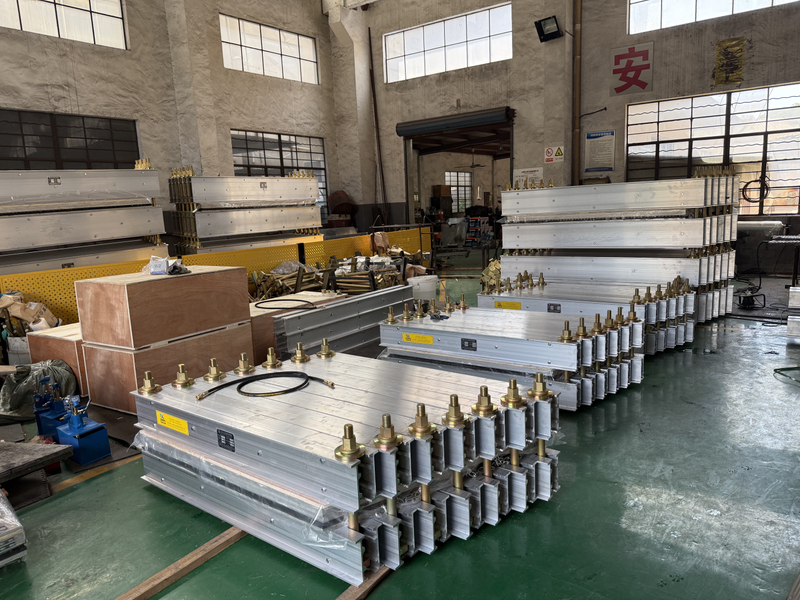

Vulcanizer Main Beam

1. Core Advantage

1.1 Significantly reduce the mass of moving parts to achieve ultra-high-speed operation

The main beam, the heaviest moving component (upper crossbeam or moving beam) in a vulcanizing machine, has a reduced mass (aluminum alloy density being only 1/3 of steel), which directly results in:

①　Exceptionally high mold opening/closing speed: The acceleration can be significantly boosted, making it ideal for rapid exhaust processes and ultra-short vulcanization cycle products (e.g., precision seals, silicone buttons), thereby dramatically improving production efficiency.

②　The start-up and stop-shock and vibration are very low, the inertia of movement is small, the equipment is more stable, and the life of the mold and equipment is improved.

1.2 Significantly reduce energy consumption

The lighter main beam enables high-speed reciprocating motion, significantly reducing the power required by the hydraulic system or motor. Over extended operation, this leads to substantial energy savings. Moreover, aluminum alloy's superior thermal conductivity allows it to dissipate the minimal heat transferred from the hot plate more efficiently. Unlike steel beams that act as massive "heat sinks," aluminum helps maintain the machine's thermal balance, thereby indirectly lowering cooling energy consumption.

1.3 Improving Dynamic Accuracy and Responsiveness

The low inertia means that the servo control system can control the displacement and lock force of the beam more quickly and accurately. This is crucial for advanced forming processes that require multi-stage pressure control and precise position control.

1.4 Easy to install, maintain, and transport

The weight of the equipment is greatly reduced, which lowers the bearing capacity requirement of the foundation.

Lifting, assembly and maintenance are more convenient.

The transportation cost of the whole machine is reduced.

2. Core Role

The role of aluminum alloy beams is not simply to replace steel beams, but to achieve top performance indicators that traditional steel beam structures struggle to attain, thereby serving specific high-end markets.

2.1 Serving the Process of "Rapid Prototyping" and "High Frequency Production"

Function: As a high-speed actuator, it fulfills the requirements of mass production, high efficiency, and short lead times for rubber components in automotive and consumer electronics industries.

2.2 As the core structure of the precision press

Function: With its low inertia and high responsiveness, when combined with precision servo hydraulic systems, it achieves nanometer or micrometer-level control of mold closing position and forming pressure, suitable for manufacturing optical-grade, medical-grade, and other products with extremely stringent tolerance requirements.

2.3 The "All Aluminum Lightweight Hot Pressing Unit" Composed of Aluminum Alloy Hot Plate

Function: The main beam and hot plate are lightweighted in sync, creating a synergistic effect that maximizes the advantages of 'rapid heating and rapid opening/closing', resulting in a vulcanizing machine with leading energy efficiency and productivity metrics.

3. Summary

The vulcanizer's main beam employs the R&D alloy 6A02 series, meeting the stringent performance standards of the 7-series material. This ensures exceptional strength and compressive resistance while being lighter and more cost-effective than conventional main beams. The aluminum alloy main beam delivers a qualitative leap in performance—enabling ultra-fast operation, energy efficiency, and rapid response. Its core purpose is to provide next-generation solutions for manufacturing high-end precision rubber products. This is not merely a cost-cutting material substitution, but a strategic and innovative design choice to achieve top-tier process performance. With advancements in aluminum alloy forming and composite structural technologies, its application in future high-performance vulcanizers is highly anticipated.
