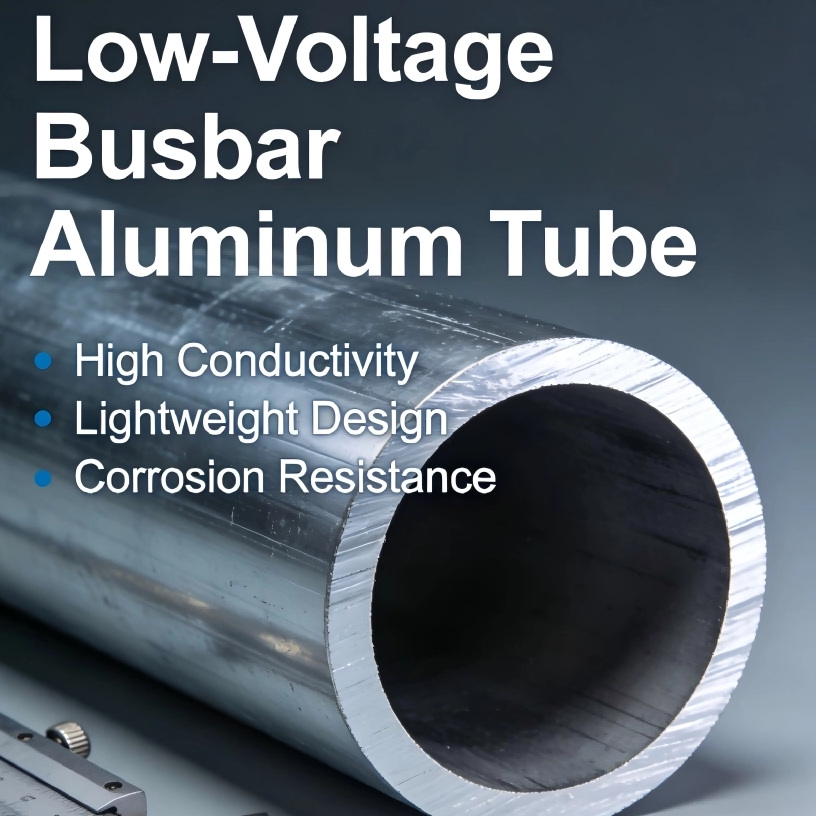

The low-voltage busbar aluminum tube serves as a critical integrated component combining conductivity, heat dissipation, and structural integrity in modern medium and low-voltage distribution systems. Compared to traditional rectangular copper bars or dense bus ducts, it merges conductor functionality with tubular physical form, achieving superior skin effect, enhanced heat dissipation capacity and increased mechanical strength.
This innovative design makes it the preferred solution for next-generation applications in data centers, renewable energy plants, industrial facilities and high-rise buildings—sectors with stringent requirements for power supply reliability, space utilization and lifecycle costs. It serves not only as a current conductor but also as the physical foundation for smart power distribution systems to achieve the goals of "efficiency, compactness and monitorability."
The rise of aluminum tubes for low-voltage busbar in power systems stems from their comprehensive superiority over traditional solutions in electrical performance, mechanical properties and lifecycle costs.
1.1 Excellence in electrical and thermal performance. The circular cross-section of aluminum tubes results in a significantly lower skin effect coefficient compared to rectangular conductors. Under alternating current loads, particularly those with high-frequency harmonics in modern applications, the current distributes more uniformly across the tube's cross-section, effectively reducing AC resistance, minimizing energy loss and decreasing heat generation. Additionally, the hollow structure creates natural air convection channels or pathways filled with insulating media (such as thermal grease), substantially increasing the heat dissipation area. This allows temperature rise to be 10-15°C lower than that of copper busbar with equivalent current-carrying capacity, significantly enhancing the system's long-term operational safety and current-carrying efficiency.
1.2 Exceptional mechanical strength combined with lightweight design. Busbar systems constructed from high-strength aluminum alloys (e.g., 6063-T6, 6061-T6) demonstrate significantly greater bending and torsional stiffness than soft copper bars of equivalent cross-section. This ensures enhanced stability in long-span applications (8-15 meters) or vibration-prone environments, allowing for fewer support points and more flexible installation. With aluminum's density being merely 30% of copper's, aluminum systems typically weigh only 40%-50% of copper counterparts while maintaining equal current-carrying capacity. This not only substantially reduces structural load on buildings but also simplifies installation and lowers overall costs.
1.3 Significant economy and sustainability. When comparable in current-carrying capacity, aluminum tubes demonstrate significantly lower direct material costs than copper. Their total cost of ownership (TCO) advantage becomes particularly pronounced when considering reduced energy consumption, minimized installation requirements and extended service life (see table below). Moreover, aluminum recycling consumes merely 5% of the energy required for primary aluminum production while achieving exceptional recovery rates. These characteristics perfectly align with global green building and sustainability standards, facilitating project certification such as LEED.
Cost | Aluminum Tube Busbar Scheme | Traditional Copper Busbar Solution | Analysis Conclusion |
Initial Material Cost | Lower | Very High | With aluminum prices significantly lower than copper, it offers a substantial cost advantage in materials. |
Installation and Structural Cost | Low | High | Lightweight, low support, easy installation, saving labor and auxiliary materials. |
Energy Cost of Operation | Low | High | Low resistance, low temperature rise, long-term energy saving benefit is remarkable. |
Maintenance Cost | Very low | Higher | Corrosion-resistant, reliable connection, paint-free and maintenance-free. |
Life Cycle and Residual Value | Long，High | Common | Long life design, high value and easy recycling of aluminum. |
Synthesize TCO | Significant Advantage | Disadvantage | Within a 3-5 year operational cycle, the cost savings will fully cover the initial investment. |
The birth of a high performance busbar aluminum tube is the deep integration of material science and precision manufacturing process.
2.1 Precision alloy selection and state control. The 6000 series (Al-Mg-Si) alloys are widely adopted, particularly 6063 and 6061. These alloys exhibit excellent conductivity (≥55% IACS), superior extrudability and high strength achieved through heat treatment (T6 state). By strictly controlling impurity elements such as iron and silicon and optimizing the magnesium-to-silicon ratio in the formulation, an optimal balance between conductivity and mechanical properties can be achieved.
2.2 Precision Extrusion and the Ultimate Pursuit of Form and Position Tolerance. The busbar aluminum tube requires exceptionally stringent specifications for outer diameter (typically Φ30mm to Φ300mm), wall thickness (standard 3mm to 12mm) and straightness (6 meters per tube, customizable as needed). Production necessitates precision molds on large-scale extruders. The advanced "online quenching + artificial aging" heat treatment process ensures consistent performance throughout the entire length. The inner wall finish is equally critical, directly affecting the smoothness of insulating medium filling or airflow.
2.3 Reliability assurance in surface treatment and connection technologies. Busbar aluminum tubes are typically treated with conductive oxidation or natural anodizing to form a dense and corrosion-resistant oxide film, enhancing their durability in long-term outdoor or harsh industrial environments. Connection technologies (such as T-joints and flange connections) serve as the safety lifeline of the system. These connections utilize specially designed high-strength aluminum castings or forgings, paired with high-conductivity galvanized bolts and torque control, ensuring extremely low contact resistance and long-term stability at connection points.
With their comprehensive advantages, busbar aluminum tubes are rapidly replacing traditional solutions in the following key areas:
3.1 Data centers and communication hubs: These are the most demanding application fields. The relentless pursuit of power density, reliability (Tier IV standards) and energy efficiency (reducing PUE values) makes aluminum busway pipes the ideal choice for densely powered row head cabinets and server rack busways. Their low loss directly reduces heat generation, saving air conditioning energy consumption, while their compact design liberates valuable space.
3.2 New energy generation and energy storage systems: At the inverter output side of large-scale photovoltaic power stations and the DC bus of energy storage battery clusters, the busbar aluminum tube can carry currents with high volatility and potential harmonics. Its excellent heat dissipation capability ensures long-term full-power operation of the system in high-temperature outdoor environments, thereby enhancing the overall power generation efficiency and service life of the power station.
3.3 High-end industrial manufacturing and rail transit: In environments such as automobile manufacturing, semiconductor plants and rail transit traction substations, loads experience significant impact and high harmonic content. The high strength of aluminum bus ducts can withstand vibrations, and their excellent electromagnetic shielding properties help reduce interference, ensuring stable operation of sensitive equipment.
3.4 Large commercial buildings and infrastructure: Serving as the main power distribution backbone for floor-level systems, large-scale lighting and HVAC systems, their lightweight design reduces structural load while modular construction enables rapid installation and future expansion, meeting the evolving demands of modern building functionalities.
With the advancement of new power systems and digitalization, busbar aluminum tube technology is evolving toward more sophisticated applications.
State awareness and intelligentization: Future busbar aluminum tubes will no longer be passive conductors. By embedding distributed temperature sensors (DTS) or wireless temperature monitoring nodes, real-time online monitoring of the entire busbar temperature can be achieved, enabling early warnings of localized overheating. Combined with current and voltage sensors, this forms a digital twin power distribution system, facilitating predictive maintenance and refined energy efficiency management.
More integrated "plug and play" design: The busbar aluminum tube system is deeply integrated with protective devices (such as circuit breakers and isolating switches), monitoring units, and insulation connectors, forming standardized and modular "functional sections." This makes the design, installation, and maintenance of the entire power distribution system as simple as assembling building blocks, significantly shortening the project cycle.
Striving for minimal energy loss and fully green power generation: The ongoing research direction involves developing new aluminum alloys with higher conductivity (e.g., approaching 62% IACS conductivity). More importantly, in response to global carbon neutrality goals, manufacturing busbar aluminum tubes using 'green aluminum' (produced from renewable energy sources with minimal carbon footprint) will become a standard feature and core competitive advantage in the high-end market, meeting regulatory requirements such as the EU CBAM.
