High-strength aluminium production faces a strict thermal ceiling. Push conventional cooling too far, and you risk surface defects, metallurgical failure, or unmanageable residual stress. Extreme friction and plastic deformation generate intense heat. This thermal load forces operators to drastically reduce press speeds to avoid melting the profile edges.
While air and water quenching suffice for standard architectural grades, extreme environments require active heat removal at the die or post-extrusion. Conventional methods simply cannot extract thermal energy fast enough for advanced aerospace or military-grade materials. They often cause uneven heat distribution, leading to warped geometries and rejected batches.
Transitioning to cryogenic thermal management is a strategic capital decision. You must carefully weigh operational complexity against the immense productivity leaps it offers. This guide outlines the exact threshold for adoption and evaluates your potential return on investment. You will discover when liquid nitrogen remains the only viable path for difficult material profiles.
Productivity vs. Cost: Liquid nitrogen cooling enables 15–30% faster extrusion speeds for high-strength alloys by maintaining isothermal conditions.
Material Threshold: Cryogenic treatment is rarely justified for standard 6000-series alloys but is often mandatory for 2000-series, 7000-series, and complex aluminium bronzes.
Tooling Economics: Targeted die cooling via liquid nitrogen drastically reduces thermal fatigue and extends tooling lifespan.
Implementation Barrier: Adoption requires assessing site infrastructure for cryogenic storage, safe handling compliance, and thermal shock mitigation.
Friction generates massive thermal energy during the extrusion process. As the ram forces the heated billet through the die cavity, extreme shear forces elevate the metal's temperature. Plastic deformation adds another layer of latent heat. This combined thermal load dictates your maximum allowable press speed. If operators push the ram faster, the exit temperature spikes beyond the material's solidus point. The metal begins to tear, blister, or suffer severe grain boundary separation.
Standard aluminium alloy cooling techniques eventually reach physical limitations. Water quenching often fails during high-stress applications because of the Leidenfrost effect. A vapor blanket forms instantly around the incredibly hot metal. This vapor barrier insulates the profile, causing erratic and uneven heat transfer. Uneven thermal extraction introduces severe residual stresses, twisting the final product beyond allowable tolerances. Air cooling avoids the vapor barrier but lacks sufficient heat-transfer rates. Forced air simply cannot pull thermal energy away fast enough for massive, high-density profiles.
Ignoring these limitations creates a severe business problem. Slow extrusion speeds destroy your plant's throughput. Operators must constantly throttle the press to keep exit temperatures safe. Surface tearing increases scrap rates exponentially. Furthermore, running dies at their maximum thermal limits accelerates degradation. The tooling experiences rapid thermal fatigue, requiring frequent polishing, repair, and replacement.
Isothermal extrusion represents the holy grail of heavy-metal processing. The core objective involves balancing thermal generation and thermal extraction perfectly. By utilizing liquid nitrogen cooling aluminium systems, you absorb the exact amount of heat generated by deformation. The sub-zero fluid acts as a precision heat sink. It keeps the metal at a constant, optimal temperature from the moment it enters the bearing to the moment it exits the die.
Engineers deploy cryogenic fluids through two primary application methods:
Die Cooling: Facilities inject liquid nitrogen directly into specialized channels machined inside the extrusion die. This cools the tooling internally and manages the temperature directly at the profile interface. It prevents the bearing surfaces from overheating and extends die life significantly.
Profile and Surface Quenching: Plants utilize cryogenic cooling zones immediately post-extrusion. Spraying liquid nitrogen onto the exiting profile locks in the desired grain structures instantly, avoiding the uneven quenching problems associated with water baths.
Sub-zero processing profoundly impacts the final metallurgical structure. Rapid, uniform heat removal refines grain boundaries, preventing unwanted grain growth during the cooling phase. It also converts retained austenite effectively in certain hybrid metal compositions. Most importantly, it relieves residual internal stresses. The metal cools symmetrically, eliminating the micro-fractures and tension points typical of conventional quenching methods.
Not every material justifies cryogenic intervention. Standard architectural grades flow easily and generate minimal friction. However, high-friction materials require an entirely different thermal strategy. When standard methods fail, plant managers must evaluate the necessity of extreme thermal extraction.
The aerospace and military sectors rely heavily on 2000-series and 7000-series profiles. These metals contain high levels of copper and zinc, respectively. They offer incredible final tensile strength but possess notoriously narrow thermal windows during extrusion. If the temperature fluctuates slightly, hot cracking occurs. Processing these difficult-to-extrude alloys demands absolute temperature control. Cryogenic systems provide the exact thermal stability required to prevent microscopic grain separation while maintaining profitable press speeds.
Aluminium bronzes and nickel-aluminium bronzes present another severe challenge. Heavy-duty engineering applications favor these alloys for their incredible wear resistance. Unfortunately, this exact property makes them incredibly abrasive during extrusion. They generate immense friction and destroy conventional tooling rapidly. Sub-zero die cooling remains essential to protect the tooling and prevent surface tearing.
Complex geometries multiply these thermal challenges. Thin-walled designs or multi-cavity profiles heat unevenly. The thinner sections exit the die much hotter than the thickest sections. This disparity causes immediate warping. Cryogenic die cooling targets specific areas of the tooling, preventing dimensional distortion and keeping tight tolerances intact.
Material Suitability for Cryogenic Intervention | |||
Alloy Category | Primary Application | Thermal Challenge Level | Cryogenic Justification |
|---|---|---|---|
6000 Series | Architectural & Commercial | Low to Moderate | Rarely justified unless geometries are extreme. |
2000 Series | Aerospace Components | Very High | Often mandatory to prevent hot cracking. |
7000 Series | Military & High-Stress Structural | Extreme | Highly recommended for tensile strength retention. |
Aluminium Bronzes | Heavy Engineering & Marine | Extreme | Essential for tooling survival and flow control. |
Throughput acceleration drives the primary financial justification for cryogenic systems. Operators generally throttle press speeds to prevent the alloy from exceeding its critical exit temperature. By actively removing heat at the die, you unlock faster ram speeds. Faster ram speeds equal higher daily output. You produce more metric tons per shift without compromising structural integrity.
Tooling replacement savings add significant financial weight. Die wear accelerates exponentially at extreme temperatures. High thermal loads soften the bearing surfaces, leading to rapid degradation. Constant heating and cooling cycles also induce thermal fatigue, causing dies to crack prematurely. Targeted cryogenic cooling keeps the die steel at safe operating temperatures, deferring costly replacement and reducing maintenance downtime.
Scrap reduction further validates the investment. When processing difficult-to-extrude alloys, surface defects destroy profit margins. Tearing, blistering, and dimensional warping lead to rejected batches. Sub-zero stabilization drastically reduces these defects. You ship a higher percentage of the metal you push.
Productivity Impact Summary Chart | |||
Performance Metric | Conventional Approach | Cryogenic Approach | Estimated Impact |
|---|---|---|---|
Press Ram Speed | Baseline Limit | +15% to +30% | High Volume Gain |
Die Lifespan | Standard Wear | +40% to +60% | Major Cost Reduction |
Batch Rejection Rate | 5% - 10% (High-Strength) | 1% - 3% | Immediate Margin Boost |
You must balance these substantial gains against the direct consumable costs. Liquid nitrogen requires ongoing procurement. The system requires specialized vacuum-jacketed piping, flow controllers, and continuous monitoring sensors. Assess these direct operational expenses against your newly unlocked production capacity.
Introducing a fluid at -196°C to a steel die operating at 500°C creates severe engineering risks. Thermal shock presents the most immediate hazard. If you flood the internal cooling channels too quickly, the massive temperature gradient will crack the tooling instantly. You must mitigate this risk through precise dosing. Automated flow-control valves are mandatory. They gradually introduce the cryogenic fluid, maintaining a safe thermal equilibrium.

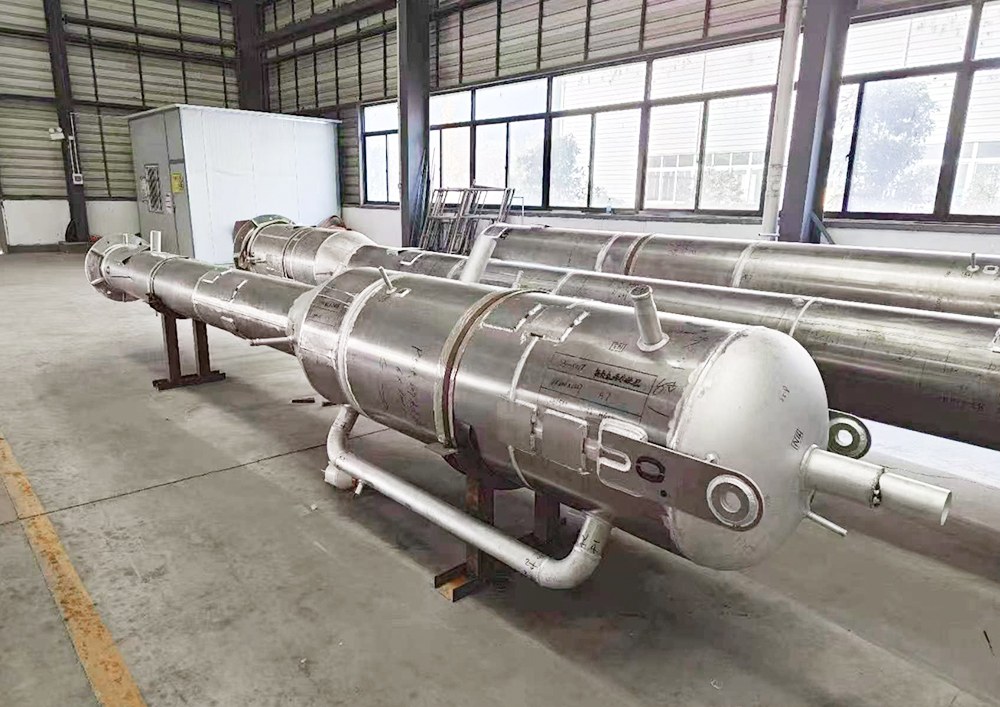

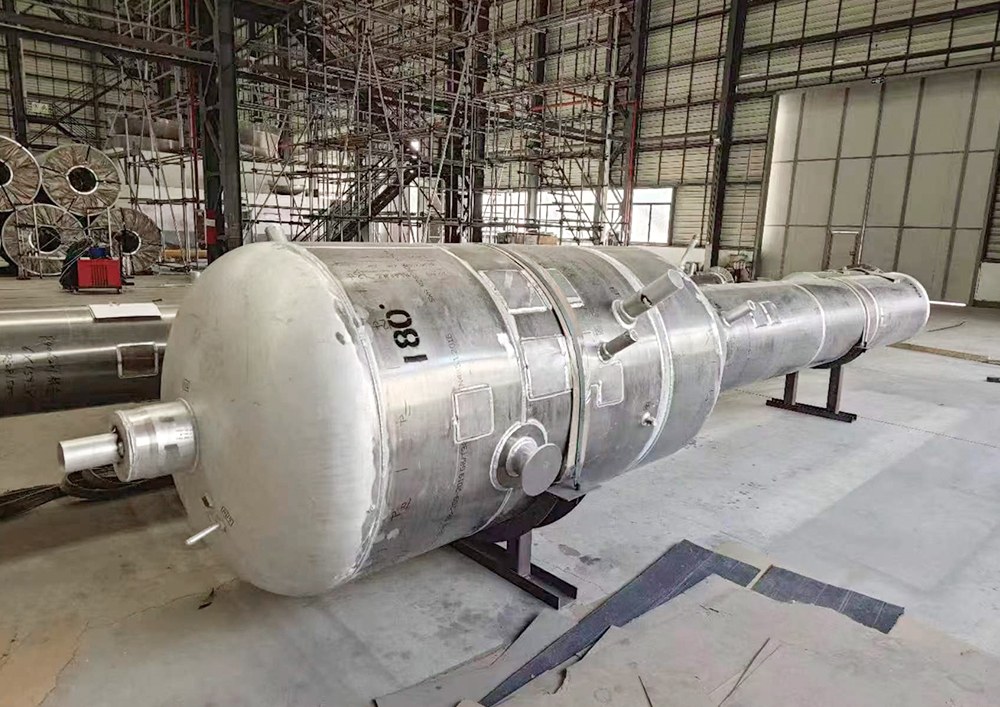

Facilities require specialized infrastructure to handle these extreme temperatures. Standard piping will fail immediately. Vacuum-insulated piping is absolutely necessary to transport the fluid without excessive boil-off. Phase separators must be installed to manage the gas-liquid ratio, venting off gaseous nitrogen before it enters the die. You will also need sufficient exterior space for bulk storage tanks, ensuring uninterrupted supply during long production runs.
Safety and compliance demand strict attention. Liquid nitrogen expands rapidly when converting to gas. This expansion displaces ambient oxygen quickly, creating an asphyxiation hazard in poorly ventilated areas. Plants must install continuous oxygen-depletion monitoring systems around the press. High-capacity exhaust ventilation remains a strict requirement to remove expanded gases. Operator safety protocols, specific handling training, and automated fail-safes are non-negotiable for compliance.
Before contacting cryogenic engineering partners, you must assess your current baseline. Audit your extrusion bottlenecks thoroughly. Determine whether pressure limits or temperature limits restrict your current speed. If the press lacks pushing power, cooling will not help. If the material overheats before reaching maximum hydraulic pressure, you are an ideal candidate for sub-zero upgrades.
When evaluating potential partners, ask specific, technical questions to ensure system reliability:
Can the system dynamically adjust fluid flow based on real-time die temperature? The equipment must read thermal sensors and adjust valves automatically to prevent thermal shock.
What are the specific maintenance intervals for the cryogenic control blocks? Extreme cold degrades seals and valves over time. You need to know the exact replacement schedules to prevent unplanned downtime.
How does the phase separation technology handle intermittent press stops? The system must manage pressure buildups safely when the ram halts temporarily.
We recommend a pilot testing phase. Do not attempt a plant-wide rollout immediately. Start with a single press or dedicate the system to a specific difficult alloy run. This allows your engineering team to validate the thermodynamic models and measure actual speed increases. Once the pilot proves successful, you can scale the infrastructure confidently across the facility.
Liquid nitrogen is not a blanket fix for poor extrusion practices or worn-out machinery. It serves as a precision tool designed specifically for pushing the physical limits of high-performance materials. By actively managing latent heat, you unlock speeds and product qualities previously thought impossible.
We advise evaluating your potential return based on the highest-margin, hardest-to-extrude profiles first. Do not waste cryogenic resources on simple architectural shapes. Focus the technology where thermal friction destroys your profitability.
Take the next logical step toward advanced thermal management. Consult a cryogenic engineering specialist to run a detailed thermal modeling assessment on your highest-friction tooling today.
A: No, if applied correctly. Warping is typically caused by uneven conventional quenching. LIN die cooling removes heat *before* the profile exits, actually improving dimensional stability.
A: No. LIN cooling manages the extrusion and quenching phase to optimize the solid solution. Artificial aging is still required to achieve final temper (e.g., T6).
A: Depending on the alloy and die complexity, facilities typically observe a 15% to 30% increase in press speed, though difficult-to-extrude alloys often see the highest relative gains.
A: Yes, with proper engineering. It requires enclosed cryogenic circuits, automated venting of gaseous nitrogen, and strict ambient oxygen monitoring to comply with industrial safety standards.
