Operating in marine environments exposes structural materials to continuous, aggressive chloride attack and high dynamic stress. Material failure here is catastrophic and expensive. Specifying a marine grade aluminum plate requires balancing yield strength, weldability, and absolute resistance to saltwater corrosion. Choosing the wrong alloy or temper leads to rapid degradation and severe structural compromise.
This article breaks down the technical criteria for evaluating marine aluminum plates. We focus specifically on the 5xxx series alloys, specialized marine tempers like H116 and H321, and the compliance standards required for commercial and naval vessel construction. You will learn exactly how to source, evaluate, and specify the correct metallurgical properties to ensure long-term seaworthiness.
Not all aluminum survives seawater. The 6xxx series alloys, like 6061, degrade rapidly in submerged chloride environments. They suffer from severe pitting. The 5xxx series (Al-Mg) serves as the required structural standard. However, buyers must choose the right specific alloy based on varying structural demands. You must match the magnesium content to your exact forming and strength requirements.
Alloy 5083 offers the highest strength among non-heat-treatable alloys in practical use. It delivers exceptional performance in extreme cold environments. Engineers rely on it heavily for cryogenic storage, LNG vessels, and standard marine hulls. It provides unmatched durability against continuous wave pounding. Fabricators praise its consistent weldability when joined using 5183 filler wire.
There is a recognized trade-off. It proves slightly more challenging to form than 5086. Fabricators must account for larger bending radii to prevent cracking during cold forming operations.
Alloy 5086 features a lower magnesium content than 5083. This composition results in slightly lower tensile strength. However, it delivers significantly superior formability. It bends easily without compromising structural integrity.

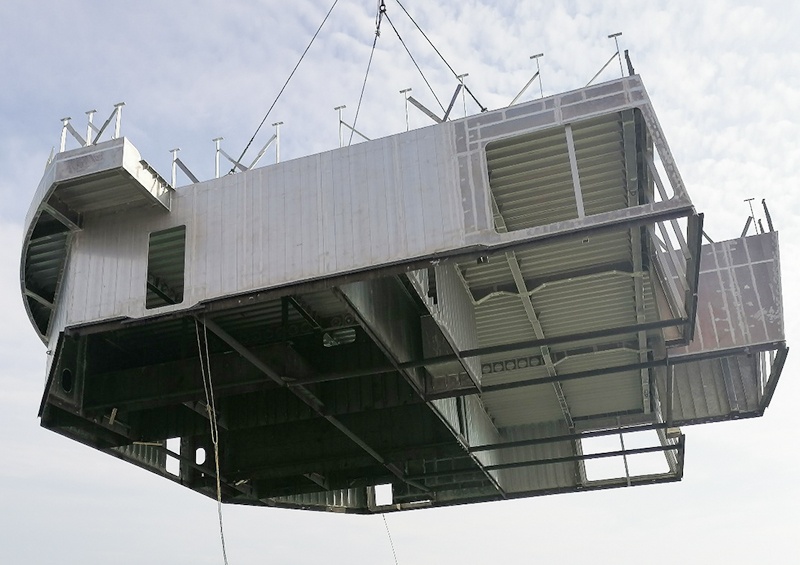

You will find it ideal for smaller vessel hulls and superstructures. It excels in complex fabrications requiring tight bending radii. Shipbuilders often specify it for patrol boats, yacht components, and customized console housing. It balances strength and ease of fabrication perfectly.
Alloy 5456 provides higher tensile and yield strength than 5083. Metallurgists engineered it for extreme load conditions. It handles massive dynamic forces exceptionally well.
Designers commonly specify this alloy in military craft, naval vessels, and high-performance offshore platform structures. Its high strength-to-weight ratio allows for faster vessel speeds and higher payload capacities.
Implementation involves specific risks. Its higher magnesium content requires strict adherence to temper guidelines. Improper handling or exposure to excessive heat can induce stress corrosion cracking (SCC). We will explore how to mitigate this sensitization risk below.
Core 5xxx Series Marine Alloys Comparison
| Alloy | Primary Characteristic | Typical Marine Applications | Formability |
|---|---|---|---|
| 5083 | Highest practical strength | Ship hulls, LNG vessels, cryogenic tanks | Moderate |
| 5086 | Excellent versatility | Superstructures, patrol boats, consoles | High |
| 5456 | Maximum yield strength | Naval ships, offshore platforms | Low |
Magnesium provides essential structural strength. However, it introduces specific vulnerabilities under certain conditions. When 5xxx alloys containing over 3% magnesium face elevated temperatures over extended periods, a dangerous metallurgical shift occurs. Magnesium can precipitate at the grain boundaries. Metallurgists call this process sensitization. It makes the plate highly susceptible to catastrophic corrosion.
Engineers developed the H116 temper specifically for magnesium-alloyed aluminum. The rolling mill applies specific strain hardening protocols. This process locks the grain structure securely. It prevents magnesium precipitation entirely, even during long-term sun exposure on a ship's deck. Consequently, it retains both high structural strength and extreme corrosion resistance.
This temper involves a carefully controlled low-temperature thermal treatment. The mill strains the metal, then applies heat to stabilize the mechanical properties. It provides near-identical corrosion resistance to H116. It behaves slightly differently during forming operations, depending heavily on the specific rolling mill's proprietary techniques. Both tempers remain fully acceptable for marine use.
Never accept standard "O" (annealed) or basic "H32" tempers for submerged hull applications. These generic tempers will fail rapidly in seawater. Always verify H116 or H321 designations on your mill certificates. A standard marine aluminum plate must feature these specialized tempers to survive long-term exposure to aggressive chloride environments.
Saltwater aggressively attacks compromised aluminum microstructures. This chemical assault leads to flaking and delamination, known as exfoliation. Alternatively, it can cause deep structural weakening along grain boundaries, known as intergranular corrosion (IGC). These hidden failures destroy structural integrity rapidly, often before visual inspections catch them.
This document serves as the defining specification for high-magnesium alloys. If the plate is not produced strictly to ASTM B928 standards, it is not genuine marine grade. Relying on lesser commercial standards invites disaster and voids warranties.
Mills must conduct rigorous corrosion testing before certifying any batch. These standardized tests prove the material can withstand oceanic conditions.
Procured plates must demonstrate mass loss below strictly specified thresholds in G67 testing. Only then are they deemed seaworthy. If a single batch fails this test, the mill must reject the entire lot. Buyers must demand proof of these test results.
In commercial boat building and offshore construction, uncertified material is unusable material. This remains true regardless of its actual chemical composition. Marine surveyors and insurance inspectors will halt construction immediately if compliance paperwork is missing.
Global maritime safety relies on independent classification bodies. Shipyards must procure materials approved by these organizations.
These bodies ensure the material meets rigorous, standardized global marine safety parameters. They audit the rolling mills regularly.
Buyers must scrutinize MTRs closely upon delivery. Look for exact chemical composition percentages. Verify the temper designation carefully. Ensure the mechanical yield and tensile testing results meet your engineering specifications. Most importantly, verify the corrosion test pass/fail marks. A missing G67 result renders the plate commercially useless for shipbuilding.
You must ensure heat lots and plate markings match the physical paperwork exactly. Look for hard stamps or stencil markings on the plate edges. Missing traceability creates massive liability during vessel inspection. Surveyors will force you to scrap unidentifiable metal. This can delay project delivery by several months.
Procuring raw materials requires strategic evaluation of your supply chain. You must assess supplier capabilities beyond simple per-pound pricing.
Marine fabrication demands incredible precision. Automated plasma cutting, laser cutting, and robotic welding require strict adherence to flatness tolerances. Often, this means specifying half-standard commercial tolerance. Poor flatness causes laser head crashes. It also ruins weld fit-ups, requiring excessive manual clamping and manipulation.
Evaluate suppliers based on their ready inventory of certified plates. Compare this against lead times for custom mill rollings. Fast-track repair projects usually rely on robust service center inventories. New, large-scale builds often benefit from direct mill runs, allowing for custom widths and lengths to reduce scrap.
Assess supplier competence carefully before issuing purchase orders. Improper storage destroys aluminum long before it reaches your shipyard. Plates stored outdoors suffer severe water staining. Galvanic contact with carbon steel storage racks causes deep pitting. Compromised plates often arrive unusable, halting your production line.
Define your exact requirements before requesting quotes. Specify thickness, width, length, alloy, temper, and required class certifications clearly. Request specific packaging, such as interleaving paper and wooden skids. This ensures apples-to-apples pricing comparisons across different vendors.
Selecting the right material requires a calculated balance. You must weigh structural requirements like 5083 versus 5086. Simultaneously, you must enforce rigid metallurgical safeguards, including mandatory H116 or H321 tempers and absolute ASTM B928 compliance.
Prioritize documented traceability and classification society approvals over baseline material cost. Cheap, uncertified aluminum guarantees catastrophic operational failures in saltwater environments. Protecting your vessel's integrity starts at the procurement phase.
Submit your engineering specifications, required dimensions, and certification needs today. Contact a specialized supplier for a comprehensive technical review and a highly competitive quote for your next marine fabrication project.
A: Only use 6061 for above-water, non-critical components like interior railings. It lacks the innate saltwater corrosion resistance found in the 5xxx series. Submerged 6061 will pit rapidly. It degrades quickly when exposed continuously to sea spray without heavy, meticulously maintained protective coatings.
A: ASTM B209 serves as a general specification for commercial aluminum sheet and plate. In contrast, ASTM B928 is written exclusively for high-magnesium marine alloys. It mandates strict corrosion testing, including G66 and G67 protocols, which B209 simply does not require.
A: Yes, 5xxx series marine plates are highly weldable. Fabricators typically use 5183, 5356, or 5556 filler metals. The exact filler choice depends on the specific base alloy and the required mechanical joint strength dictated by the vessel's engineering plans.
A: While 5052 offers excellent general corrosion resistance, it lacks adequate yield strength. Structural hull plating in larger vessels demands high dynamic load resistance. Alloy 5083 provides this required strength, making it the undisputed structural standard for shipbuilding worldwide.
