Aluminum alloy profiles for curtain walls and doors & windows are the core materials of the exterior envelope in modern high-rise and high-quality buildings. They are not only physical components that divide indoor and outdoor spaces, but also key factors determining the aesthetic performance, energy efficiency, safety durability, and construction costs of buildings.
The performance requirements for aluminum profiles in curtain walls and doors/windows are highly complex, requiring a delicate balance among multiple seemingly conflicting demands.
1.1 Achieving precise mechanical balance is the primary challenge. Aluminum profiles must possess sufficient wind pressure resistance and deformation resistance (stiffness) to withstand extreme weather conditions, while being as lightweight as possible to reduce structural loads and lower transportation and installation costs. Through alloy optimization and cross-sectional design, modern high-performance aluminum profiles can achieve a strength-to-weight ratio more than three times that of traditional steel.
1.2 The generational leap in thermal performance is pivotal to energy conservation. While standard aluminum profiles serve as efficient thermal conductors, innovative thermal break technology embeds high-strength insulating strips within the profiles, effectively isolating them from both indoor and outdoor environments to block heat transfer pathways. Premium thermal break aluminum profiles can reduce the overall heat transfer coefficient (U-value) of entire windows by 40%-60% compared to non-thermal break profiles, making them the cornerstone of building energy efficiency.
1.3 The enduring commitment to weather and corrosion resistance is pivotal to building longevity. Aligned with environmental challenges including UV radiation, acid rain, and salt fog, aluminum profiles undergo multiple surface treatments—such as anodizing, electrophoresis coating, powder spraying, and fluorocarbon spraying—to achieve decades-long weather resistance without fading or powdering, with minimal maintenance costs.
The creation of a premium architectural aluminum profile represents the perfect fusion of material science and manufacturing techniques.
2.1 The precise selection of alloys forms the foundation. For doors, windows, and curtain wall profiles, six-series aluminum-magnesium-silicon alloys such as 6063,6063A,6061, and 6060 are primarily used. These alloys exhibit excellent extrusion properties, moderate strength, superior corrosion resistance and adaptability to surface treatments. By adjusting the ratios of magnesium and silicon elements and adding trace amounts of manganese, chromium, and other elements, the strength, toughness, and processing characteristics of the profiles can be precisely controlled.
2.2 The core of extrusion molding technology. The aluminum bar is extruded through precision molds at high temperatures to form the designed complex cross-section, a process that determines the dimensional accuracy, surface finish, and mechanical properties of the profile. Modern extruders employ technologies such as isothermal extrusion and online quenching to produce ultra-large cross-section profiles with thinner walls, more complex shapes, and more uniform performance.
2.3 The "armor" and "dress" of surface treatment. Surface treatment serves not only aesthetic purposes but is also essential for long-term protection. From basic anodizing (forming a hard oxide film) to colorful powder coating (scratch-resistant and UV-resistant), and then to ultra-weather-resistant fluorocarbon coating (PVDF coating for super high-rise buildings and harsh environments), the selection of treatment processes directly impacts the durability and final aesthetic effect of building facades.
The design of aluminum profile for curtain wall doors and windows is a systematic project which involves architecture, structural mechanics and manufacturing technology.

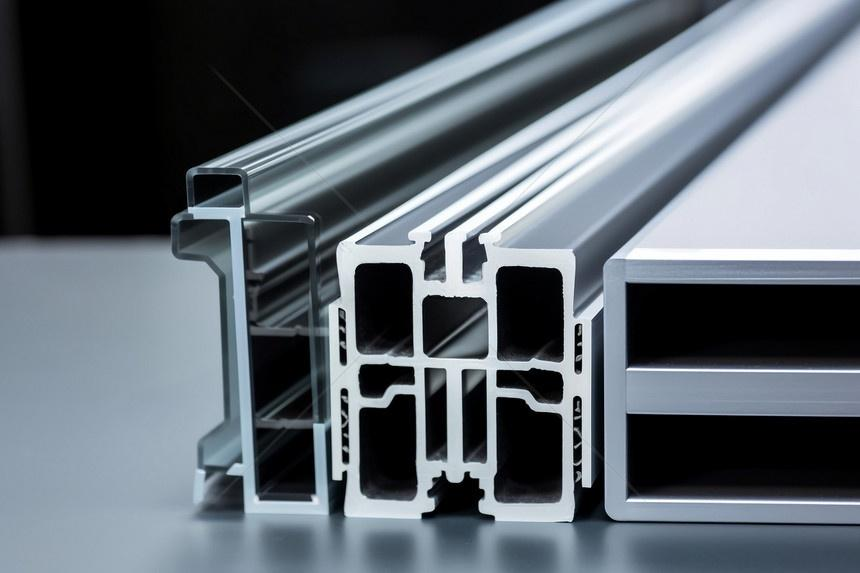

3.1 The artistry of cross-sectional design. A profile's cross-section serves as the functional backbone. An exceptional cross-section design must integrate multiple functionalities—including multi-chamber insulation structures, multi-layered sealing groove slots, hardware installation cavities, condensate drainage channels, and reinforcing ribs—while ensuring the feasibility of extrusion processes. This demands designers to possess profound expertise in materials, manufacturing techniques, and end-use applications.
3.2 The trend toward systematic integration. Modern architecture has moved away from piecemeal profile assembly, adopting pre-engineered "window and door systems" or "curtain wall systems." These systems provide a complete set of compatible profiles, hardware, seals, and installation solutions, ensuring optimal and stable performance in water tightness, air tightness, wind pressure resistance, thermal insulation, and soundproofing. This significantly enhances both construction quality and efficiency.
3.3 Enhancing architectural expressiveness. Aluminum profiles' exceptional processability enables the creation of both minimalist hidden frames and intricate curved surfaces. They support oversized glass panels to create expansive views while forming delicate grilles that sculpt light and shadow patterns, serving as a vital tool for architects to transform creative sketches into reality.
Although both are peripheral structures, curtain wall profiles and door & window profiles have significant differences in design and application.
4.1 Curtain Wall Profiles: The "Exoskeleton" of Buildings. As non-load-bearing exterior walls suspended outside the main structure, curtain walls primarily consist of profiles forming the load-bearing framework (columns and beams). These profiles typically feature larger cross-sections, thicker walls, and stringent mechanical performance requirements, necessitating rigorous structural calculations. Designed for large spans, high-density partitions, and exceptional wind pressure resistance along with planar deformation capacity, they achieve architectural integrity and a modern aesthetic through their comprehensive facade design.
4.2 Window and Door Profiles: The 'Interface' of Space. These components, installed in wall openings, form the window frame and sash. They prioritize thermal insulation, airtightness, diverse operation modes (hinged, sliding, inward-opening), and user-friendly details. The profile cross-section must precisely match hardware and sealing strips to ensure smooth operation and airtightness.
System integration between the two. In many cases, doors and windows need to be integrated into the large panels of the curtain wall system (window-wall system). This requires perfect matching between the profiles of doors and windows and those of the curtain wall in terms of appearance color, structural connections, and performance indicators, to achieve uniformity in the building facade and functional integrity.
The building aluminum profile industry is facing multiple challenges and opportunities from sustainable development, digitalization and construction mode change.
5.1 Green and low-carbon have become mandatory indicators. With the continuous improvement of global building energy efficiency standards (such as China's "dual carbon" goals and the EU Green Deal), the thermal performance requirements for profiles have been upgraded from "temperate standards" to "cold-region or even passive house standards." Meanwhile, the lifecycle carbon emissions of aluminum profiles have drawn attention, making the use of low-carbon electrolytic aluminum, increasing the proportion of recycled aluminum, and optimizing production energy consumption essential challenges for the industry chain.
5.2 Intelligentization and functional integration. Future aluminum profiles may not only serve as structural components but also as carriers for smart buildings. "Smart profiles" that pre-integrate LED lighting cables, sensors, and automatic ventilation systems into the profile cavities are under development, which will transform the interaction between building facades and indoor environments.
5.3 The deep integration of prefabricated construction. Prefabricated buildings require highly standardized, modular, and rapid-installation exterior envelope systems. This imposes higher demands on the design precision of aluminum profiles, standardization of interfaces, and connection technologies with the main structure, driving the evolution of profile products from 'materials' to 'prefabricated components'.
